High Security Chain Link Fence with Barbed Tape Coils

We supply high security mesh fences chain link style for perimeter security and various borders security. Our woven wire security fences and gates can be produced according to different standards of different target countries.

High Security Chain Link Fence and gates supplied and installed in ASTM standard

Drawings references in PDF:

High security fence

Security Fence Gate

Fence Posts with Extension Arms and Tension Wire for Fence and Barbed Wire Fixing

Security Fence Gate, Accessories and Barbed Tape Coils

Grade and Installation

Fence Mesh:

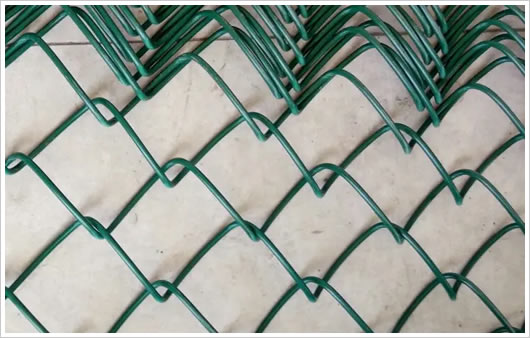

Poly (Vinyl Chloride) (PVC) and other Organic Polymer-Coated Steel Chain-Link Fence

Fence fabric produced according to Standard quality:
Finish: Class 2b polyvinyl chloride-coated steel fabric with 92 grams of zinc coating per square meter in accordance with ASTM F668.
Fabricate fence fabric of 9 gauge wire woven in 50 mm mesh conforming to ASTM A116.
Polyvinyl chloride coating for fabric and all other fence components be manufacturer's standard color.
Fabric twisted and barbed on the top selvage and knuckled on the bottom selvage.

Security Fence and Gates with stretcher bars or ties spaced 375 mm on center, or by integrally weaving to integral fastening loops of end, corner, pull, and gate posts for full length of each post.
Polyvinyl Chloride-Coated Fence Materials:
The polyvinyl chloride-coated fence materials shall not for cracking, peeling, and conformance with the
specifications prior to installation.

Fencing Gate assembly conforming to ASTM F900 and/or ASTM F1184 of the type and swing.
Gate frames conforming to strength and coating requirements of ASTM F1083 for Group IA, steel pipe, with external
coating Type A, nominal pipe size (NPS) 1-1/2.
Security Gate frames conforming to strength and coating requirements of ASTM F1043, for Group
IC, steel pipe with external coating Type A or Type B, nominal pipe size (NPS) 1-1/2.
Gate fabric- chain link fabric.

Gate Leaves
More than 2.44 m wide, provide either intermediate members and diagonal truss rods or tubular members as necessary to provide
rigid construction, free from sag or twist.
Gate leaves less than 2.44 m wide shall have truss rods or intermediate braces.
Attach fabric to the gate frame by method standard with the manufacturer except that welding will not be permitted.

Gate Hardware and Accessories
Furnish and install latches, hinges, stops, keepers, rollers, and other hardware items as required for the operation of the gate.
Latches for padlocking so that the padlock will be accessible from both sides of the gate.
Stops for holding the gates in the open position. Each end member of gate frames extended sufficiently above the top member to carry three strands of barbed wire in horizontal alignment with barbed wire strands on the fence.

Padlocks
Padlocks conforming to ASTM F883, Type PO1, Options B, E, and G, Grade 6. Size 44 mm. Key all padlocks alike.

Barbed tape coil
Single coil, for fence toppings fabricated from 430 series stainless steel with a hardness range of Rockwell (30N)
37-45 conforming to the requirements of ASTM A240/A240M.
Stainless steel strip 0.6 mm thick by 25 mm wide before fabrication.
Each barb shall be a minimum of 30.5 mm in length, in groups of 4, spaced on 102 mm centers.
The stainless steel core wire has a 2.5 mm diameter with a minimum tensile strength of 9.68 MPa and be in accordance with ASTM A478.
16 gauge stainless steel twistable wire ties for attaching the barbed tape to the barbed wire.

Metal Posts for Chain Link Fence
Posts conforming to ASTM F1083, zinc-coated. Group IA, with external coating Type A steel pipe.
Group IC steel pipe, zinc-coated with external coating Type A or Type B and Group II, roll-formed steel
sections, meeting the strength and coating requirements of ASTM F1043 and ASTM A702.
Post shall be either Group IA steel pipe, Group IC, or Group II, roll-formed steel sections, and be zinc coated (Type A) conforming to
the requirements of ASTM F1043.

Line posts and terminal (corner, gate, and pull) posts of the same designation throughout the fence.
Gate post for the gate type specified subject to the limitation specified in ASTM F900.
Post spacings conform to the recommended guidelines as set forth in the CLFMI "Wind Load Guide for the Selection of Line Post Spacing and
Size" unless specified.

Accessories conforming to ASTM F626. Ferrous accessories are zinc coated.
Furnish truss rods for each terminal post.
Minimum nominal diameter 8 mm truss rods with turnbuckles or other equivalent provisions for adjustment.
Barbed wire supporting arms of the V 6 strand arm type and of the design required for the post furnished.
Secure arms by riveting to post, spacing at no more than 3050mm intervals.
9 gauge steel tie wire for attaching fabric to rails, braces, and posts and match the coating of the fence fabric.
Miscellaneous hardware coatings shall conform to ASTM A153/A153M unless modified.

Braces and Bottom Rails
ASTM F1083, zinc-coated, Group IA, steel pipe, size NPS 1-1/4. Group IC steel pipe, zinc-coated, shall meet the strength and coating requirements of ASTM F1043.
Braces and bottom rail meeting Group IA, Group IC, steel pipe, size NPS 1-1/4 or Group II, formed steel sections, size 42 mm
outside diameter by 3.56 mm minimum wall thickness and be zinc coated (Type A) conforming to the requirements of ASTM F1043. Group II, formed steel sections, size 42 mm outside diameter by 3.56 mm minimum wall thickness, conforming to ASTM F1043, may be used as braces and bottom.

Wire Ties constructed of the same material as the fencing fabric with polyvinyl (PVC) coating.
Barbed Wire conforming to ASTM A121 zinc-coated, Type Z, Class 3, or aluminum-coated, Type A, with 12.5 gauge wire with 14 gauge, round,
4-point barbs spaced no more than 102 mm apart.
Tension Wire: Type I or Type II tension wire, Class 4 coating, in accordance with ASTM A824.
7 gauge coil spring wire for top wire.

FENCE INSTALLATION REFERENCE

Post Installation
Set posts plumb and in alignment. Where solid rock is covered with an overburden of soil or loose rock, set posts to the minimum depth indicated on the drawing unless a penetration of 457 mm in solid rock is achieved before reaching the indicated depth, in which case terminate depth of penetration. Grout all portions of posts set in rock.

Make diameters of holes in solid rock at least 25 mm greater than the largest cross section of the post. Thoroughly consolidate concrete and grout around each post, free of voids and finished to form a dome. Allow concrete and grout to cure for 72 hours prior to attachment of any item to the posts.

Test fence post rigidity by applying a 222.4 newtons force on the post, perpendicular to the fabric, at 1.52 m above ground. Post movement measured at the point where the force is applied shall be less than or equal to 19 mm from the relaxed position. Test every tenth post for rigidity. When a post fails this test, make further tests on the next four posts on either side of the failed post. All failed posts shall be removed, replaced, and retested.

Rails
Bolt bottom rail to double rail ends and securely fasten double rail ends to the posts. Peen bolts to prevent easy removal. Install bottom rail before chain link fabric.

Fence Fabric Installation
Install chain link fabric on the side of the post indicated. Attach fabric to terminal posts with stretcher bars and tension bands. Space bands at approximately 381 mm intervals. Install fabric and pull taut to provide a smooth and uniform appearance free from sag, without permanently distorting the fabric diamond or reducing the fabric height. Fasten fabric to line posts at approximately 381 mm intervals and fastened to all rails and tension wires at approximately 610 mm intervals.

Cut fabric by untwisting and removing pickets. Accomplish splicing by weaving a single picket into the ends of the rolls to be joined. The bottom of the installed fabric shall be 50 mm plus or minus 13 mm above the ground.

After the fabric installation is complete, exercise the fabric by applying a 222 newtons push-pull force at the center of the fabric between posts; the use of a 133 newtons pull at the center of the panel shall cause fabric deflection of not more than 63.5 mm when pulling fabric from the post side of the fence; every second fence panel shall meet this requirement.

Supporting Arms Installation
Install barbed wire supporting arms and barbed wire. Anchor supporting arms with 9.5 mm diameter plain pin rivets.
Studs driven by an explosive-actuated tool shall not be used with gray iron or other material that can be fractured. Use a minimum of two studs per support arm. Pull barbed wire taut and attach to the arms with clips or other means that will prevent easy removal.

GATE INSTALLATION
Mount gates to swing. Install latches, stops, and keepers as required. Install gates as recommended by the manufacturer. Attach padlocks to gates or gate posts with chains.

ASTM Standard Applied for High Security Chain Link Fences and Gates

HIGH-SECURITY CHAIN LINK FENCES AND GATES
ASTM INTERNATIONAL (ASTM)

ASTM A116
(2011) Standard Specification for Metallic-Coated, Steel Woven Wire Fence Fabric

ASTM A121
(2013) Standard Specification for Metallic-Coated Carbon Steel Barbed Wire

ASTM A153/A153M
(2016) Standard Specification for Zinc Coating (Hot-Dip) on Iron and Steel Hardware

ASTM A240/A240M
(2016) Standard Specification for Chromium and Chromium-Nickel Stainless Steel Plate, Sheet, and Strip for Pressure Vessels and for General Applications

ASTM A478
(1997; R 2013) Standard Specification for Chromium-Nickel Stainless Steel Weaving and Knitting Wire

ASTM A702
(2013) Standard Specification for Steel Fence Posts and Assemblies, Hot Wrought

ASTM A780/A780M
(2009; R 2015) Standard Practice for Repair of Damaged and Uncoated Areas of Hot-Dip Galvanized Coatings

ASTM A824 (2001; R 2012) Standard Specification for Metallic-Coated Steel Marcelled Tension
Wire for Use With Chain Link Fence

ASTM C94/C94M
(2016) Standard Specification for Ready-Mixed Concrete

ASTM F1043
(2016) Strength and Protective Coatings on Metal Industrial Chain-Link Fence Framework

ASTM F1083 (2016) Standard Specification for Pipe, Steel, Hot-Dipped Zinc Coated Galvanized)
Welded, for Fence Structures

ASTM F1184
(2016) Industrial and Commercial Horizontal Slide Gates

ASTM F567
(2014a) Standard Practice for Installation of Chain Link Fence ASTM F626 (2014) Standard Specification for Fence Fittings

ASTM F668
(2011) Poly(Vinyl Chloride) (PVC) and other Organic Polymer-Coated Steel Chain-Link Fence Fabric

ASTM F883
(2013) Padlocks

ASTM F900
(2011) Industrial and Commercial Swing Gates
